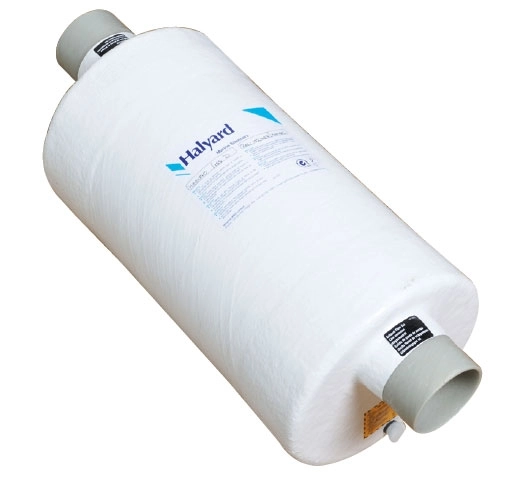

Halyard Muffler H001501 / HEE045
The Halyard Muffler is an exhaust silencer offered under codes H001501 and HEE045, featuring a 2.00 inch (51 mm) inlet size and a weight of 1.8 kg.
Key Features
- Halyard Code 1: H001501
- Halyard Code 2: HEE045
- Construction: Side inlet – side outlet
- Sound insulation rate: 40% sound insulation
Technical Specifications
| Parameter | Value |
|---|---|
| Halyard Code 1 | H001501 |
| Halyard Code 2 | HEE045 |

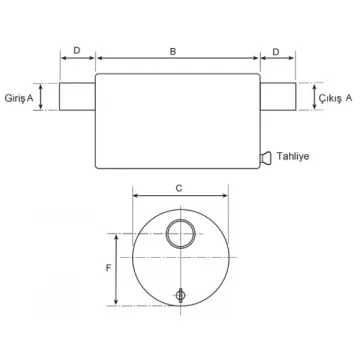

| A in/mm | 2.00 / 51 |
| B mm | 250 |
| C mm | 178 |
| D mm | 65 |
| F mm | 133 |
| Weight (kg) | 1.8 |
Product Description
The Halyard Muffler is an exhaust silencer with a side inlet and side outlet construction, providing 40% sound insulation. The product is identified by codes H001501 and HEE045, with its technical data clearly specified as a 2.00 inch (51 mm) inlet size and a weight of 1.8 kg.
...
...
