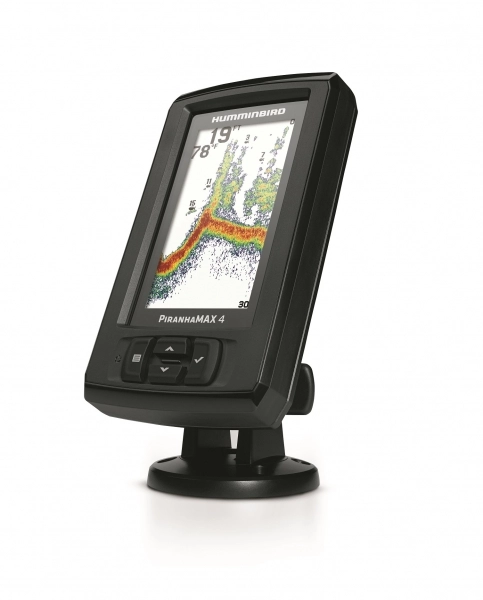

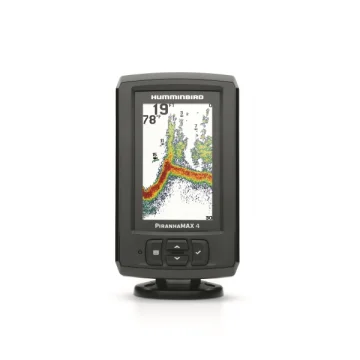

PIRANHAMAX 4 Fish Finder
The PIRANHAMAX 4 is a fish finder device that helps you track underwater structure and fish locations in detail with its 4.3" color display, DualBeam sonar coverage, and depth capacity.
Key Features
- Clear viewing of underwater images with a 4.3" color display
- DualBeam sonar coverage: 200 kHz/28° @ -10db, 455 kHz/16° @ -10db
- Additional control during monitoring with depth, fish, and battery alarms
- Ability to view fish along with their depth thanks to the FishID+ feature
Technical Specifications
| Depth capacity | 180 m |
|---|---|
| Display size | 4.3" |
| Display pixel matrix | 272V x 480H |
| Display type | TFT 256 color |
| Power output | 300 Watt (continuous) - 2400 Watt (peak) |
| Sonar frequency | 200 kHz & 455 kHz |
| Sonar coverage | 28° & 16° @ -10db |
| Target separation | 2.5" |
| Standard transducer | Transom mount |
| Transducer model | XNT 9 28 T |
| Operating voltage range | 10.8 - 20V DC |
| Power consumption | 180 mA |
...
...
