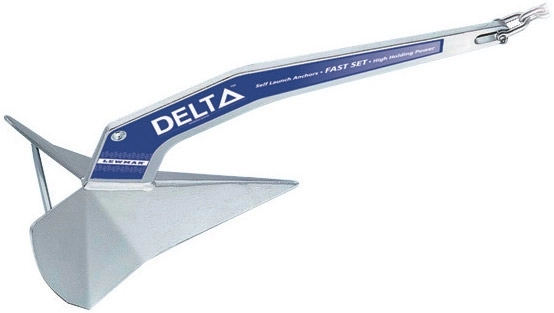

The Lewmar Delta anchor is manufactured from high-grade manganese steel for maximum tensile strength. Its unique profile and balanced tip allow it to self-bury into the seabed. The low center of gravity and special geometry enable the Delta anchor to set quickly.
This model weighs 32 kg and is recommended for boats 16-20 m in length. The recommended chain size is 10 mm.
| Weight | 32 kg |
| Recommended Boat Length | 16-20 m |
| Recommended Chain Size | 10 mm |

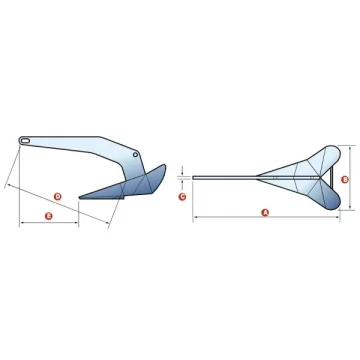

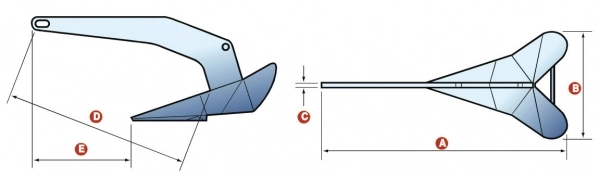

| A | 1023 mm |
| B | 453 mm |
| C | 20 mm |
| D | 775 mm |
| E | 425 mm |
...
...
