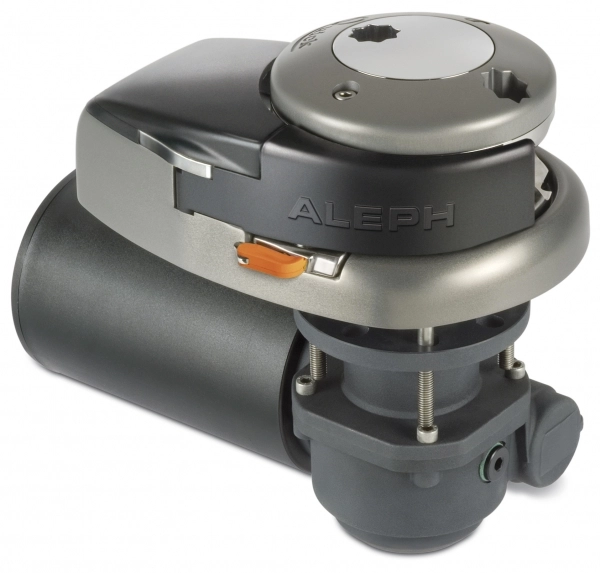

Quick ALEPH is a vertical windlass without a gypsy, designed for use on boats 7-10 meters in length, with a 700W motor power and 24V supply. It serves as anchoring equipment in chain and rope systems compatible with its 8 mm gypsy structure.
| Product type | Vertical windlass, model without gypsy |
|---|---|
| Brand / Model | Quick ALEPH |
| Motor power | 700W |
| Voltage | 24V |
| Gypsy | 8 mm |
| Suitable boat length | 7-10 m |
| Maximum pull | 680 kg |
| Maximum working load | 320 kg |
| Working load | 107 kg |
| Operating current | 50A |
| Winding speed (no load) | 25.3 m/min. |
| Winding speed (at working load) | 11.4 m/min. |
| Weight without gypsy | 16.2 kg |
| Weight with gypsy | 17.4 kg |
- Manufactured from AISI 316 stainless steel, aluminum, chrome plating, and composite materials.
- Features an anodized aluminum, hard anodized body and an anodized aluminum gearbox.
- Available in versions with and without a gypsy; this model is without a gypsy.
- Offers the capability to pull 14/16 mm rope with the chain gypsy.
- Equipped with a manual free-fall system and an emergency manual retrieval system.
- Comes with a chain stripper bar.
- Has an IP67 rated waterproof motor construction.
- 8 mm gypsy is compatible with 8 mm DIN766, 8 mm ISO, 5/16" G4, and 5/16" BBB chains.
- 10 mm gypsy is compatible with 10 mm DIN766, 10 mm ISO, and 3/8" G4 chains.
- The sensor required for an optional chain counter connection is pre-installed as standard on the windlass.
- Solenoid and remote control are included as standard equipment.
- CE certified.
...
...
