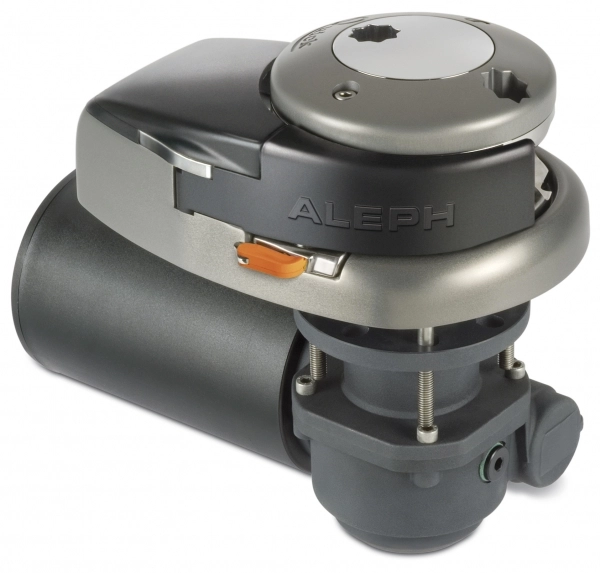

The Quick ALEPH vertical windlass, with its drumless model structure and 8 mm gypsy, is an anchor windlass designed for boats in the 7-10 meter length range. It operates with a 700W motor power and 12V supply.
- Product type: Vertical, drumless windlass
- Brand / Model: Quick ALEPH
- Motor power: 700W
- Voltage: 12V
- Gypsy: 8 mm
- Suitable boat length: 7-10 m
- Body: Anodized aluminum, hard anodized body
- Body materials: AISI 316 stainless steel, aluminum, chrome plating, and composite
- Structure: Capable of pulling 14/16 mm rope with chain gypsy, chain stripper bar
- Working load: 100 kg
- Maximum working load: 300 kg
- Maximum pull: 680 kg
- Retrieval speed (no load): 22.6 m/min
- Retrieval speed (under working load): 11.6 m/min
- Weight without drum: 16.2 kg
- Weight with drum: 17.4 kg
- Protection class: IP67 waterproof motor
- Gearbox: Anodized aluminum gearbox
- Free-fall: Manual Free-Fall system
- Emergency: Manual retrieval system
- Standard equipment: Solenoid and handle
- Chain counter sensor: Sensor for optional chain counter connection is standard mounted on the windlass
- Chain compatibility (8 mm gypsy): Suitable for 8 mm DIN766, 8 mm ISO, 5/16" G4, 5/16" BBB chains
- Chain compatibility (10 mm gypsy): Suitable for 10 mm DIN766, 10 mm ISO, 3/8" G4 chains
- Certification: CE approved
...
...
