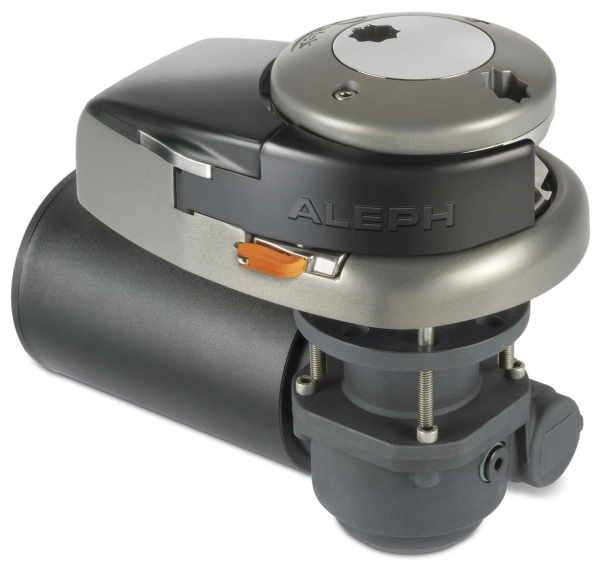

The Quick ALEPH vertical windlass is a drumless model anchor windlass with a 10 mm chain gypsy, operating at 1000W power and 12V supply.
- Type: Vertical windlass, drumless model
- Motor power: 1000W
- Voltage: 12V
- Chain gypsy: 10 mm
- Suitable boat length: 10–13 m
- Weight without drum: 17.5 kg
- Weight with drum (reference): 18.7 kg
- Maximum pull: 1000 kg
- Maximum working load: 370 kg
- Working load: 120 kg
- Amperage at working load: 140 A
- Retrieval speed (no load): 39.6 m/min.
- Retrieval speed (at working load): 20.4 m/min.
Its body is made of anodized aluminum with a hard oxide coating. It offers the capability to handle 14/16 mm rope with the chain gypsy. It is equipped with a manual free-fall system, an emergency manual retrieval system, a chain stripper bar, and an IP67-rated waterproof motor. It features an anodized aluminum gearbox.
- 8 mm gypsy: Suitable for 8 mm DIN766, 8 mm ISO, 5/16" G4, 5/16" BBB chains
- 10 mm gypsy: Suitable for 10 mm DIN766, 10 mm ISO, 3/8" G4 chains
The necessary sensor for an optional chain counter connection is standardly mounted on the windlass. The solenoid and windlass handle are included as standard equipment. It is CE certified.
...
...
