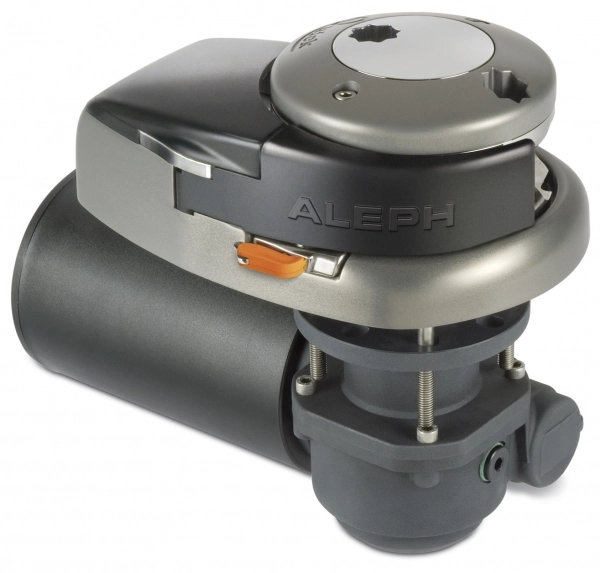

Quick ALEPH is a vertical, gypsy-less windlass. It is designed with a 1000W motor power, 12V supply, and an 8 mm chain gypsy.
- Type: Vertical windlass, gypsy-less model
- Motor power: 1000W
- Voltage: 12V
- Gypsy: 8 mm
- Suitable chains (8 mm gypsy): 8 mm DIN766, 8 mm ISO, 5/16" G4, 5/16" BBB
- Maximum pull: 1000 kg
- Maximum working load: 370 kg
- Working load: 120 kg
- Current at working load: 140 A
- Winding speed (no load): 39.6 m/min.
- Winding speed (at working load): 20.4 m/min.
- Weight without gypsy: 17.5 kg
- Weight with gypsy (reference): 18.7 kg
- Recommended boat length: 10–13 m
- Body manufactured from AISI 316 stainless steel, aluminum, chrome plating, and composite materials
- Anodized aluminum, hard anodized body
- Capability to pull 14/16 mm rope with the chain gypsy
- Manual free-fall system
- Manual retrieval system for emergencies
- Chain stripper bar
- IP67 rated waterproof motor
- Anodized aluminum gearbox
- Sensor for optional chain counter connection is standard mounted on the windlass
- Solenoid and remote control are standard equipment
- CE approved
...
...
