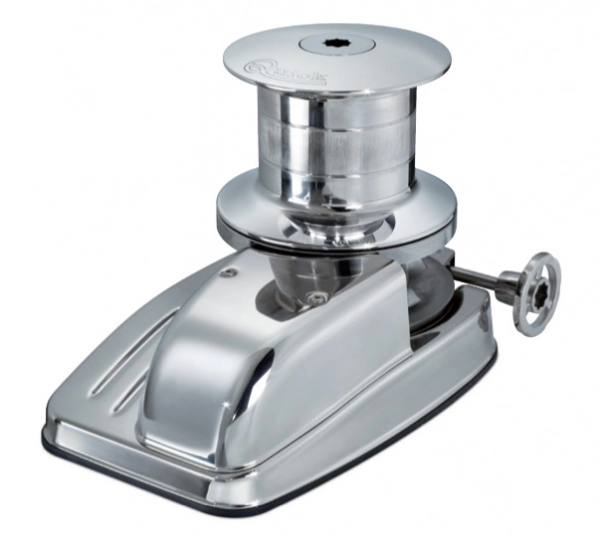

Quick DUKE vertical windlass is a high-performance anchoring equipment designed for boats between 22-29 meters in length. It operates with a 3500W motor power and 24V voltage.
| Motor Power | 3500W |
| Voltage | 24V |
| Gypsy Diameter | 16 mm |
| Maximum Pulling Capacity | 4000 kg |
| Maximum Working Load | 1500 kg |
| Working Load | 700 kg |
| Amperage at Working Load | 225A |
| Winding Speed (No Load) | 24 m/min. |
| Winding Speed (at 700 kg Load) | 14 m/min. |
Its construction utilizes marine-grade AISI 316 stainless steel, aluminum, chrome plating, and composite materials. It is CE certified and features a standard sensor for the optional chain counter connection. The solenoid and winch handle are standard equipment.
...
...
