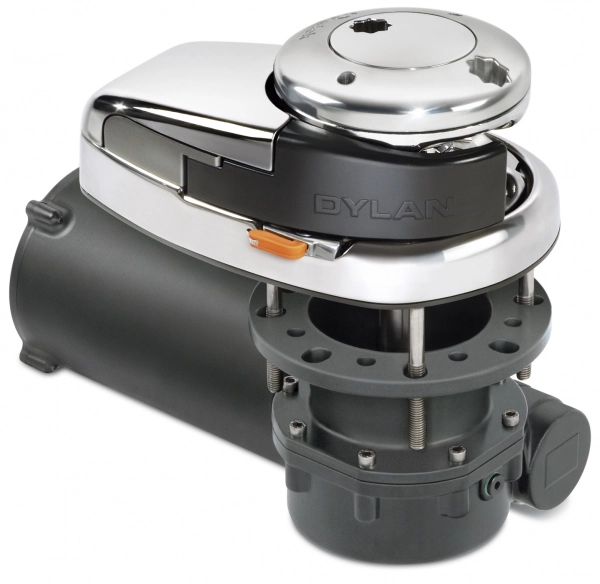

The Quick DYLAN vertical windlass without gypsy is an anchor windlass designed for 12V systems, featuring a 1700W motor power and a 12/13 mm chain gypsy.
- Type: Vertical windlass, model without gypsy
- Motor power: 1700W
- Voltage: 12V
- Gypsy: 12/13 mm
- Suitable boat length: 14–16 m
- IP rating: IP67 waterproof motor
- Body: AISI 316 stainless steel and hard anodized aluminum body
- Gearbox: Anodized aluminum
- Maximum pull: 1100 kg
- Maximum working load: 470 kg
- Working load: 155 kg
- Amperage at working load: 170 A
- Retrieval speed (no load): 35.2 m/min.
- Retrieval speed (at working load): 13.2 m/min.
- Weight without gypsy: 26.2 kg
- Weight with gypsy: 28.2 kg
- Manual free-fall system
- Manual retrieval system for emergencies
- Chain stripper bar
- 10 mm gypsy: Compatible with 10 mm DIN766, 10 mm ISO, 3/8" G4, 3/8" BBB chains
- 12/13 mm gypsy: Compatible with 12 mm ISO, 13 mm DIN766, 7/16" G4 chains
- Solenoid and remote control are standard equipment.
- A sensor for optional chain counter connection is standard mounted on the windlass.
...
...
