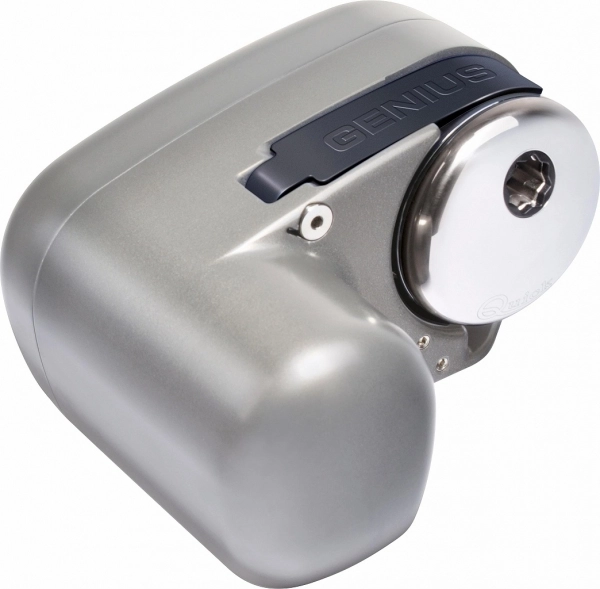

Quick GENIUS GP2 1200 is a horizontal windlass without a gypsy, a model suitable for boats up to 6.9 meters in length, featuring a 250 W 12 V motor and a 6 mm gypsy. Designed for use in boat and yacht mooring/anchor systems with chain and rope pulling capabilities.
| Model | GP2 1200 |
|---|---|
| Motor Power | 250 W |
| Voltage | 12 V |
| Maximum Pull | 550 kg |
| Maximum Working Load | 170 kg |
| Working Load | 50 kg |
| Amperage at Working Load | 35 A |
| Winding Speed | 31.2 m/min. |
| Winding Speed (at Working Load) | 25.1 m/min. |
| Gypsy | 6 mm |
| Suitable Boat Length | 6.9 m |
The windlass body is made of anodized aluminum hard oxide. While this is a model without a gypsy, the series offers options with or without a gypsy. It features a stainless steel gypsy and gypsy cover, chain stripper, and chain gypsy, offering the capability to pull 12/14/16 mm rope.
- Horizontal windlass design
- Anodized aluminum hard oxide body
- Series with optional gypsy or gypsy-less models, this model: without gypsy
- Stainless steel gypsy and gypsy cover
- Capability to pull 12/14/16 mm rope with chain gypsy
- Chain stripper
- IP66 rated waterproof motor
- Epicyclical gearbox
- 6 mm gypsy: Compatible with 6 mm DIN766, 6 mm ISO chains
- 8 mm gypsy: Compatible with 8 mm DIN766, 8 mm ISO, 5/16" BBB chains
The product is CE certified. The sensor required for the optional chain counter connection is pre-installed as standard on the windlass. Solenoid and remote control are included as standard equipment.
...
...
