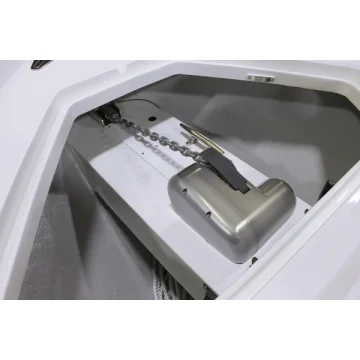

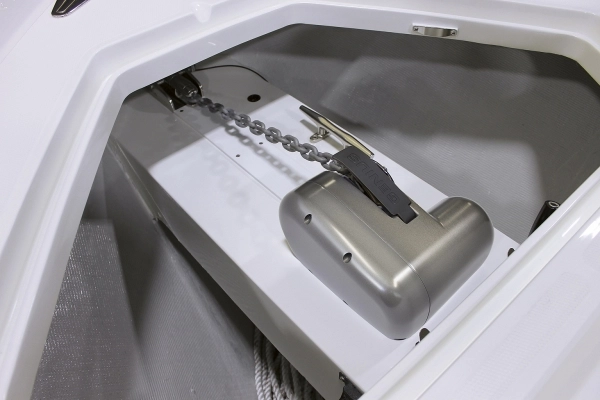

Quick GENIUS GP2 2000 is a horizontal, drumless anchor windlass, powered by a 800 W motor operating at 24 V, with an 8 mm gypsy, designed for boats in the 8–13 meter length range.
| Model | GP2 2000 |
|---|---|
| Motor Power | 800 W |
| Voltage | 24 V |
| Maximum Pull | 900 kg |
| Maximum Working Load | 350 kg |
| Working Load | 120 kg |
| Current at Working Load | 50 A |
| Winding Speed | 29.6 m/min |
| Winding Speed (at Working Load) | 20 m/min |
| Gypsy | 8 mm |
| Suitable Boat Length | 8–13 m |
The windlass body and components are made of AISI 316 stainless steel, anodized aluminum hard oxide body, chrome plating, and composite materials. The series is available in drum and drumless versions; this model is the drumless type.
- Horizontal windlass design
- Anodized aluminum hard oxide body
- Stainless steel drum and gypsy cover (series feature)
- Capability to pull 12/14/16 mm rope with chain gypsy
- Chain press bar
- IP66 class waterproof motor
- Epicyclical gearbox
- 6 mm gypsy: Compatible with 6 mm DIN766, 6 mm ISO chains
- 8 mm gypsy: Compatible with 8 mm DIN766, 8 mm ISO, 5/16" BBB chains
- CE approved construction
- Sensor for optional chain counter connection is standard mounted on the windlass
- Solenoid and winch handle are included as standard equipment
...
...
