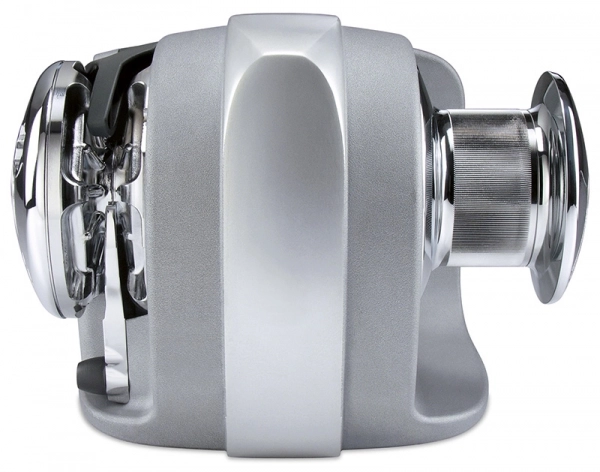

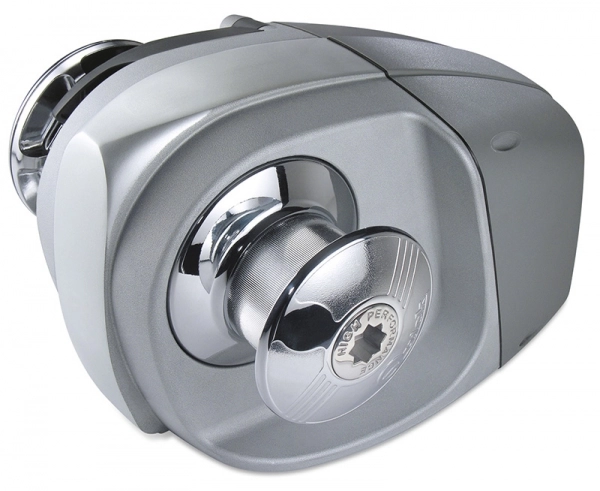

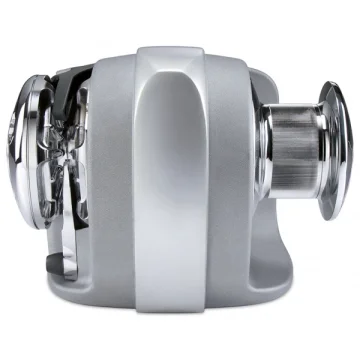

Quick HECTOR horizontal capstan winch is a mooring and anchoring equipment designed for boat lengths between 7–10 m, with a 700W motor power and 24V supply. It can be used in chain and rope systems compatible with its 8 mm gypsy structure.
The body structure utilizes AISI 316 stainless steel, aluminum, chrome plating, and composite materials. It is equipped with an IP66 class waterproof motor, an integrated solenoid unit, and a manual release system. The product is CE certified.
- Type: Horizontal, capstan winch
- Motor power: 700W
- Voltage: 24V
- Gypsy: 8 mm
- Maximum pull: 1100 kg
- Maximum working load: 300 kg
- Working load: 125 kg
- Current at working load: 50 A
- Winding speed (no load): 29.2 m/min
- Winding speed (at working load): 15.2 m/min
- Suitable boat length: 7–10 m
- Body material: Anodized aluminum / composite
- Manual release system and chain stripper bar
- Sensor for optional chain counter is ready on the winch
- Solenoid and winch handle are standard equipment
- 8 mm gypsy: Compatible with 8 mm DIN766, 8 mm ISO, 5/16" G4, 5/16" BBB chains
- 10 mm gypsy: Compatible with 10 mm DIN766, 10 mm ISO, 3/8" G4 chains
- 12/13 mm gypsy: Compatible with 12 mm ISO, 13 mm DIN766 chains
...
...
