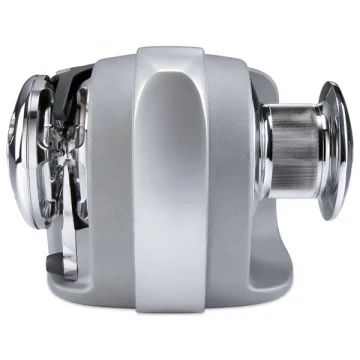

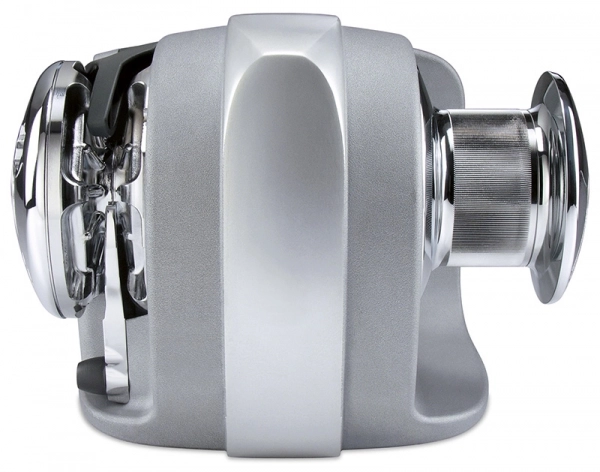

Quick HECTOR horizontal windlass with gypsy, designed for anchoring and mooring applications on boats 7-10 m in length, features a 700W motor power and 12V supply. It operates with an 8 mm chain gypsy.
The body structure utilizes AISI 316 stainless steel, aluminum, chrome plating, and composite materials. It is CE certified. The necessary sensor for an optional chain counter connection is standard on the windlass. The solenoid unit and winch handle are standard equipment.
- Horizontal windlass, gypsy model
- Anodized aluminum / composite body
- Capability to pull 14/16/18 mm rope with chain gypsy
- Manual release system
- Chain stripper bar
- Integrated solenoid unit
- IP66 class waterproof motor
- 8 mm gypsy: Compatible with 8 mm DIN766, 8 mm ISO, 5/16" G4, 5/16" BBB chains
- 10 mm gypsy: Compatible with 10 mm DIN766, 10 mm ISO, 3/8" G4 chains
- 12/13 mm gypsy: Compatible with 12 mm ISO, 13 mm DIN766 chains
| Technical Specification | Value |
|---|---|
| Motor power | 700W |
| Voltage | 12V |
| Gypsy | 8 mm |
| Maximum pull | 1100 kg |
| Maximum working load | 300 kg |
| Working load | 100 kg |
| Current at working load | 90A |
| Retrieval speed (no load) | 26 m/min. |
| Retrieval speed (at working load) | 14 m/min. |
| Suitable boat length | 7-10 m |
...
...
