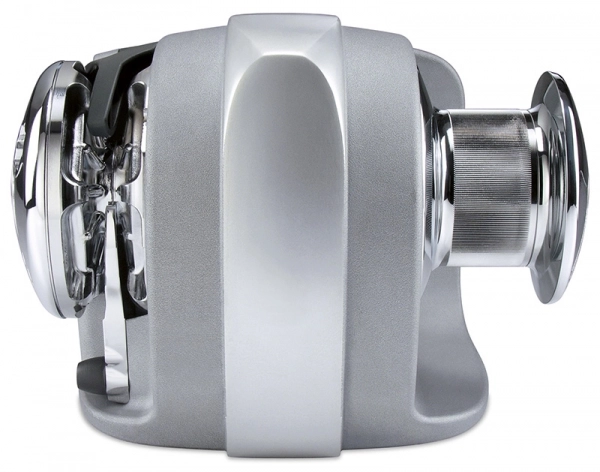

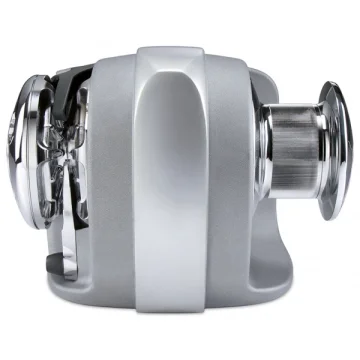

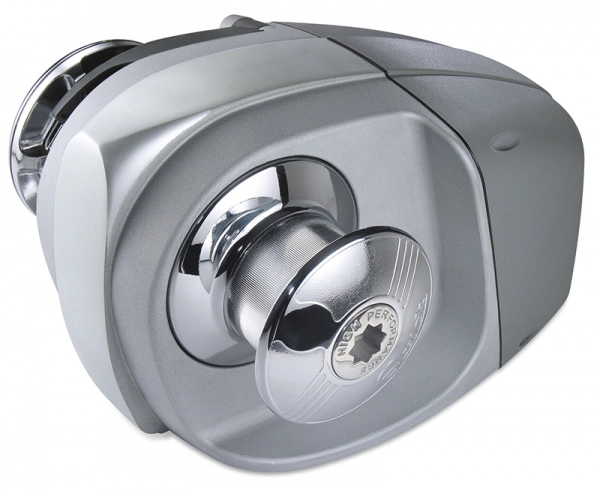

Quick HECTOR is a horizontal windlass with a gypsy, designed as an anchor windlass for boats 12-15 m in length, featuring a 1500W motor power and 24V supply. It has an 8 mm gypsy.
The body construction utilizes AISI 316 stainless steel, aluminum, chrome plating, and composite materials. It is CE certified. The necessary sensor for the optional chain counter connection is mounted as standard on the windlass. The solenoid unit and winch handle are among the standard equipment.
- Horizontal windlass
- Gypsy model
- Anodized aluminum / composite body
- Manual release system
- Chain stripper bar
- Integrated solenoid unit
- IP66 rated waterproof motor
- Capability to pull 14/16/18 mm rope with chain gypsy
- 8 mm gypsy: Suitable for 8 mm DIN766, 8 mm ISO, 5/16" G4, 5/16" BBB chains
- 10 mm gypsy: Suitable for 10 mm DIN766, 10 mm ISO, 3/8" G4 chains
- 12/13 mm gypsy: Suitable for 12 mm ISO, 13 mm DIN766 chains
| Motor Power | 1500W |
|---|---|
| Voltage | 24V |
| Maximum Pull | 1500 kg |
| Maximum Working Load | 550 kg |
| Working Load | 185 kg |
| Amperage at Working Load | 85A |
| Winding Speed (No Load) | 40 m/min. |
| Winding Speed (at Working Load) | 19.2 m/min. |
| Suitable Boat Length | 12-15 m |
| Gypsy | 8 mm |
...
...
