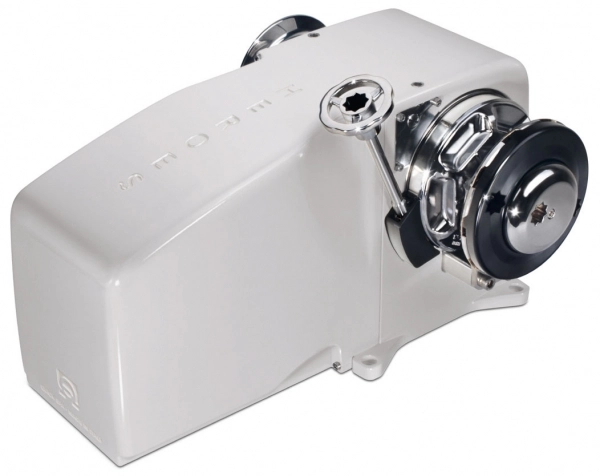

Quick Heroes 2300 is a horizontal windlass operating on a 24V power supply, with a power of 2300W. Designed for use in mooring and anchoring systems, it features a 14 mm chain gypsy, options for a body with or without a drum, and a suitable construction for boats 15-20 m in length.
| Model | Heroes 2300 |
|---|---|
| Power | 2300W |
| Voltage | 24V |
| Gypsy | 14 mm |
| Maximum Pull | 2400 kg |
| Maximum Working Load | 850 kg |
| Maximum Winding Speed | 29.9 m/min. |
| Weight without Drum | 64 kg |
| Weight with Drum | 71 kg |
| Suitable Boat Length | 15-20 m |
The windlass body is manufactured from AISI 316 stainless steel, aluminum, chrome plating, and composite materials suitable for marine conditions. It is CE certified.
- Horizontal windlass design
- White (RAL9010) painted aluminum body
- Option for use with or without a drum
- Capability for rope hauling with chain gypsy
- Integrated solenoid
- Manual hauling system
- Manual free-fall system
- Mechanical brake
- IP66 rated protected motor
- Gearbox with anodized aluminum housing
Gypsy and chain compatibilities:
- 10 mm gypsy: Compatible with 10 mm DIN766, 10 mm ISO, 3/8˝ G4, 3/8˝ BBB chains
- 12/13 mm gypsy: Compatible with 12 mm ISO, 13 mm DIN766, 7/16˝ G4 chains
- 14 mm gypsy: Compatible with 14 mm DIN766, 1/2˝ G4 chains
...
...
