Quick HEROES winch.

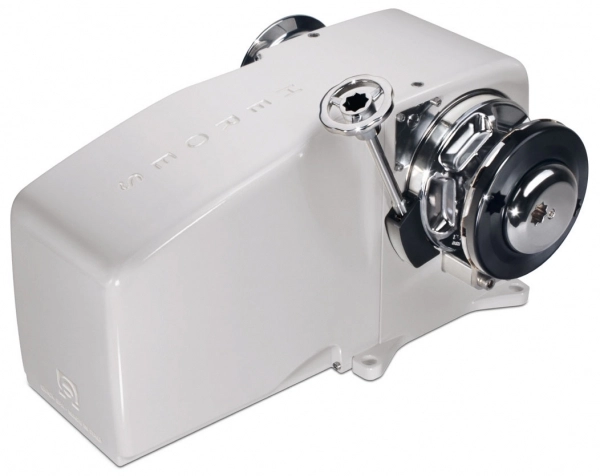

Quick Heroes 3500 is a horizontal windlass with a power of 3500W, a supply voltage of 24V, and a 14 mm gypsy size. Its maximum pulling capacity is 3500 kg, maximum working load is 1500 kg, and maximum hauling speed is 39.2 m/min. Its weight without the drum is 76 kg, and with the drum is 83 kg. It is suitable for boats with lengths of 20-24 m.

Its body construction utilizes AISI 316 stainless steel, aluminum, chrome plating, and composite materials. It is CE certified. The necessary sensor for the optional chain counter connection is standard on the windlass. An integrated solenoid and a winch handle are among the standard equipment.

• Horizontal windlass design
• White (RAL9010) painted aluminum body
• Option for version with or without drum
• Capability to haul rope with chain gypsy
• Integrated solenoid
• Manual hauling system
• Manual free-fall system
• Mechanical brake system
• Motor with IP66 protection class
• Gearbox with anodized aluminum housing
• 10 mm gypsy: Compatible with 10 mm DIN766, 10 mm ISO, 3/8˝ G4, 3/8˝ BBB chains
• 12/13 mm gypsy: Compatible with 12 mm ISO, 13 mm DIN766, 7/16˝ G4 chains
• 14 mm gypsy: Compatible with 14 mm DIN766, 1/2˝ G4 chains
