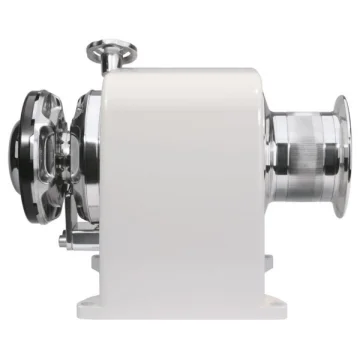

Quick HEROES 3500 is a horizontal windlass with a 24V power supply and 3500W power. It is designed for use on boats with a length of 20-24 m, with a 12/13 mm chain gypsy.
| Model | Heroes 3500 |
|---|---|
| Power | 3500W |
| Voltage | 24V |
| Gypsy | 12/13 mm |
| Maximum Pull | 3500 kg |
| Maximum Working Load | 1500 kg |
| Maximum Retrieval Speed | 39.2 m/min |
| Weight without Drum | 76 kg |
| Weight with Drum | 83 kg |
| Suitable Boat Length | 20-24 m |
The body structure is made of AISI 316 stainless steel, aluminum, chrome-plated, and composite materials. It has CE approval. The necessary sensor for the optional chain counter connection is mounted as standard on the windlass. The integrated solenoid and winch handle are among the standard equipment.
- Horizontal windlass design
- White (RAL9010) painted aluminum body
- Version with or without drum
- Capability to pull rope with chain gypsy
- Integrated solenoid
- Manual retrieval system
- Manual free-fall system
- Mechanical brake
- IP66 class protected motor
- Gearbox with anodized aluminum body
- 10 mm gypsy: Compatible with 10 mm DIN766, 10 mm ISO, 3/8˝ G4, 3/8˝ BBB chains
- 12/13 mm gypsy: Compatible with 12 mm ISO, 13 mm DIN766, 7/16˝ G4 chains
- 14 mm gypsy: Compatible with 14 mm DIN766, 1/2˝ G4 chains
...
...
