Quick MC² X Gyro Stabilizer
The Quick MC² X gyroscopic stabilizer, with its 16k model, offers 5325 Nms angular momentum and 16350 Nm output torque. The system, reaching 5000 rpm rotation speed, operates within a wide voltage range of 90-260V AC.
Installments are available only in Turkish Lira.
The Quick MC² X is a patented gyroscopic stabilizer with an electromagnetic brake, designed to reduce the rolling period on boats. It operates without the need for a seawater cooling circuit or hydraulic system and is adaptable to a wide range of vessels.
Key Features
- Patented Dynamic Roll Control: Dynamically adjusts roll speed using an electromagnetic brake.
- Compact and Functional Design: Its rational design and rubber shock absorbers eliminate the need for periodic part replacement.
- Wide Compatibility: Can be installed anywhere on the boat and is suitable for all boat types. Available in 9 different models for boats up to 250 tons.

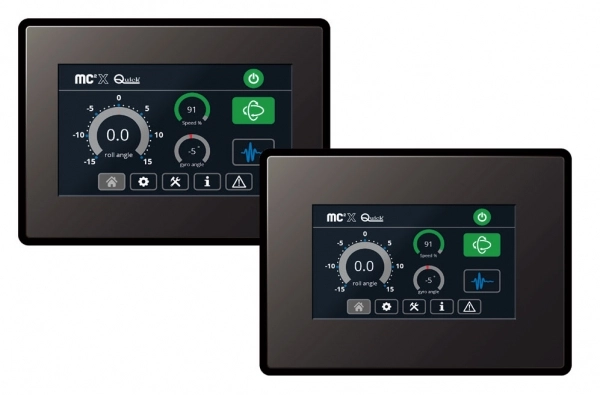

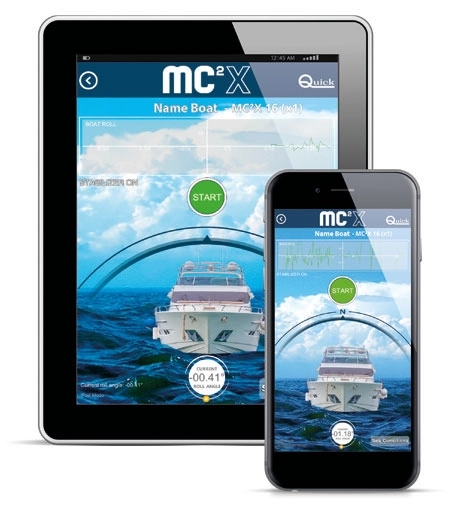

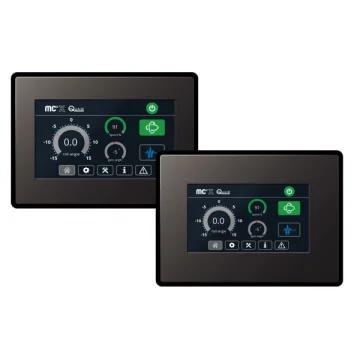

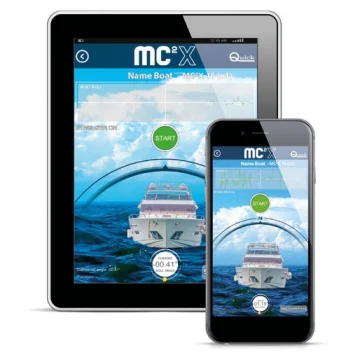

- Advanced Control: Features a touchscreen control panel, mobile app support (iOS/Android), and a roll lock function.
- Low Noise and High Efficiency: Operates at a noise level of <70 dB and is equipped with Quick electric motors.
Technical Specifications
| Specification | Value |
|---|---|
| Model | MC²X 16k |
| Rotation Speed | 5000 rpm |
| Angular Momentum | 5325 Nms |
| Output Torque | 16350 Nm |
| Acceleration Time to RPM | 35 minutes |
| Acceleration Time to Stabilization | 25 minutes |
| Maximum Power Requirement | 2200 W |
| AC Input Voltage | 90-260 V AC |
| Frequency | 50-60 Hz |
| Operating Temperature | -10°C ~ +60°C |
| Noise Level | < 70 dB |
| Weight | 500 kg |
| Dimensions (W x H x D) | 610 x 610 x 663 mm |
Installation and Compatibility
- Multiple stabilizers can be installed as needed. A separate control panel is used for each set.
- A 4” or 5” touchscreen and connection cable must be ordered separately.
- It is recommended to contact the manufacturer to select the model suitable for your boat.
...
...
