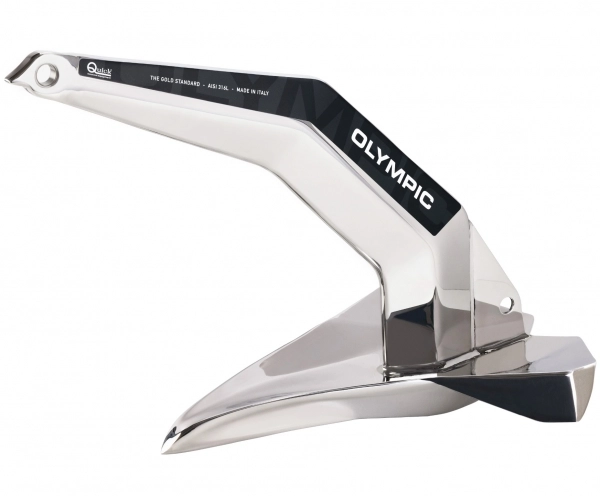

The Quick Olympic anchor, with its 7 kg weight and 6 mm chain size, is defined by the technical values given for a 6 m boat length and 1.8 T boat weight. The product is part of the Olympic anchor series developed through detailed product engineering and manufacturing processes carried out within Quick.
The shape and size of the Olympic anchors are proportioned to allow a greater amount of lead in the front part of the nose. This weight distribution option allows the center of gravity to protrude more towards the tip in a compact size. The subsequent sheet metal forming process supports weight distribution optimization by allowing a high strength/mass ratio. The resulting voids and trapped air inside create a buoyancy effect, contributing to the anchor's positioning on the seabed. The compact shaft structure allows the Olympic anchor to be compatible with many bow rollers available on the market.

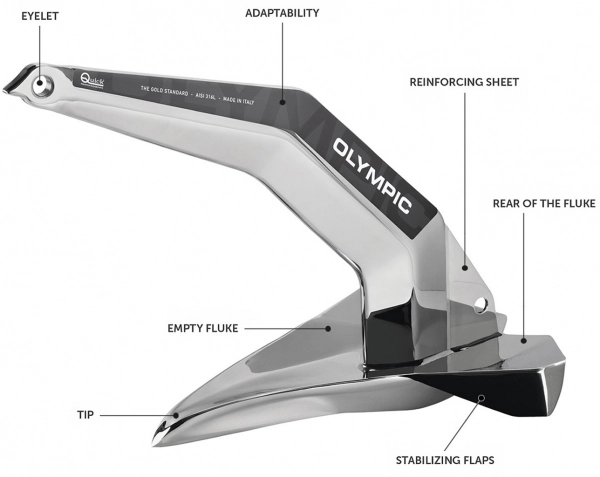

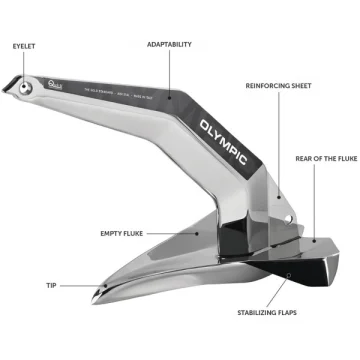

Structural Features
- Tip: Developed on two circular surfaces designed to facilitate the sliding of the material encountered during the seabed penetration process.
- Stabilizing Fins: Helps the anchor remain in a perpendicular position to the seabed during the gripping phase.
- Reinforcement Plate: The special reinforcement applied between the nose and body increases the joining surface between the two anchor elements and allows the buoy rope to be secured, enabling the anchor to be released.
- Eye: The special shape and dimensions of the hole are designed to allow the anchor to be lifted easily and safely; the eye thickness is calculated to withstand high tensile stresses.

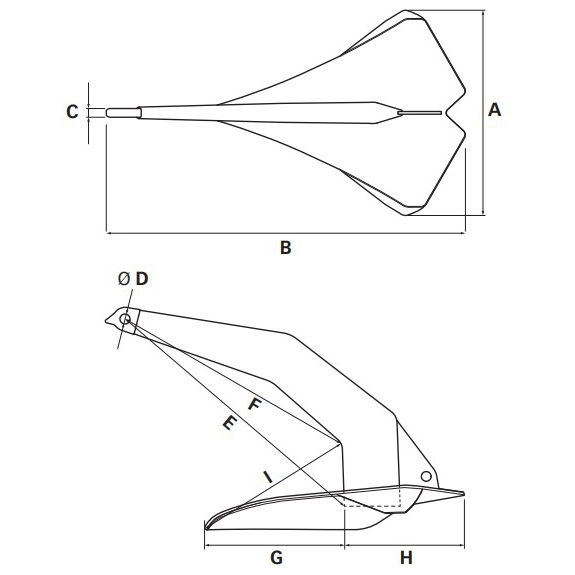

Technical Dimensions
| Anchor (Kg) | 7 |
| Chain (mm) | 6 |
| Boat Length (m) | 6 |
| Boat Weight (T) | 1.8 |
| A (mm) | 318 |
| B (mm) | 539 |
| C (mm) | 14 |
| D (mm) | 12 |
| E (mm) | 435 |
| F (mm) | 375 |
| G (mm) | 221 |
| H (mm) | 185 |
| I (mm) | 247 |
