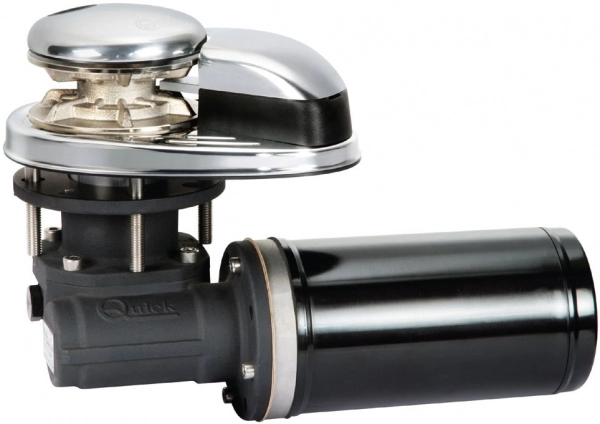

The Quick Prince DP3 vertical windlass is a drumless model, operating at 1500W power and 12 V voltage. It has a 10 mm chain gypsy.
| Model | DP3 |
|---|---|
| Power | 1500W |
| Voltage | 12 V |
| Gypsy | 10 mm |
| Type | Vertical windlass, drumless model |
- AISI 316 stainless steel body
- Working load: 160 kg
- Options with or without drum
- Capability to pull 12/14 mm rope with chain gypsy
- Manual Free-Fall system
- Chain stripper bar
- IP67 rated waterproof motor (on 700W, 1000W, 1500W models)
- Gearbox with anodized aluminum body
- 6 mm gypsy: for 6 mm DIN766, 6 mm ISO chains
- 8 mm gypsy: for 8 mm DIN766, 8 mm ISO, 5/16” G4, 5/16” BBB chains
- 10 mm gypsy: for 10 mm ISO, 3/8” G4, 3/8” BBB chains
...
...
