Quick Prince DP2 is a vertical, gypsy-type windlass. It operates on 12 V voltage with 1000W power and is supplied with an 8 mm gypsy.

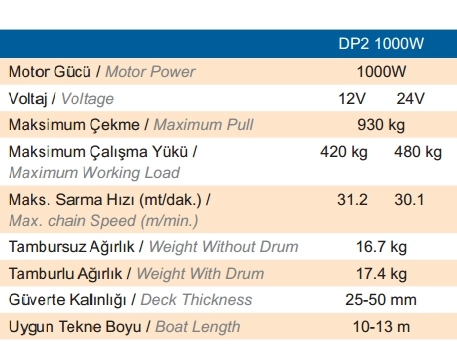

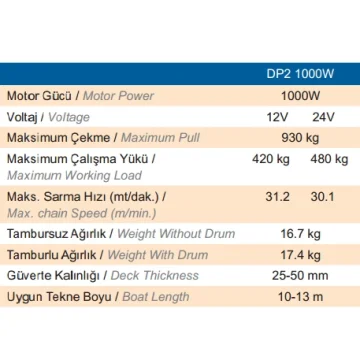

| Model | DP2 |
|---|---|
| Power | 1000W |
| Voltage | 12 V |
| Gypsy | 8 mm |
| Type | Vertical windlass |
| Construction | AISI 316 stainless steel body, anodized aluminum gearbox housing |
| Model type | Gypsy-type |
| Working load | 140 kg |
| Motor protection | IP67 rated waterproof motor (on 700W, 1000W, 1500W models) |
| Free fall | Manual Free-Fall system |
| Chain stopper | Chain stopper bar |
| Rope retrieval | Rope retrieval for 12/14 mm rope with chain gypsy |
| Chain compatibility (8 mm gypsy) | 8 mm DIN766, 8 mm ISO, 5/16” G4, 5/16” BBB chains |
CE certified. The necessary sensor for optional chain counter connection is mounted as standard on the windlass. Solenoid and remote control are included in the standard equipment.
...
...
