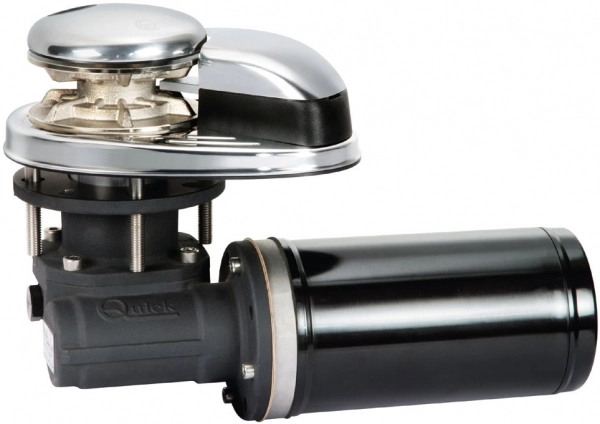

The Quick Prince DP1 vertical windlass without gypsy is a model with 500W power and 12V voltage, featuring a 6 mm chain gypsy.
| Model | DP1 |
|---|---|
| Power | 500W |
| Voltage | 12V |
| Gypsy | 6 mm (for 6 mm DIN766, 6 mm ISO chains) |
| Type | Vertical windlass, model without gypsy |
| Working Load | 65 kg |
| Body Material | AISI 316 stainless steel body, gearbox with anodized aluminum body |
| Rope Pulling | Pulling 12/14 mm rope with chain gypsy |
| Systems | Manual free-fall system, chain stripper bar |
| Motor Protection | IP67 class waterproof motor (in 700W, 1000W, 1500W models) |
| Approval | CE approved |
| Standard Equipment | Solenoid and winch handle |
The product is manufactured from AISI 316 stainless steel, aluminum, chrome plating, and composite materials. The series includes options with and without a gypsy.
...
...
