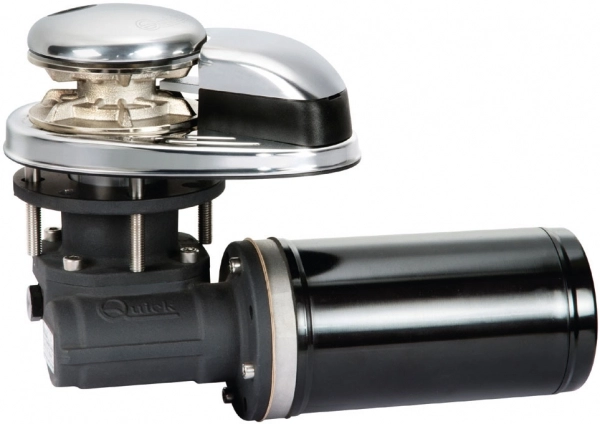

The Quick Prince DP3 model vertical windlass is a drumless design with 1500 W power, 24 V voltage, and a 10 mm chain gypsy.

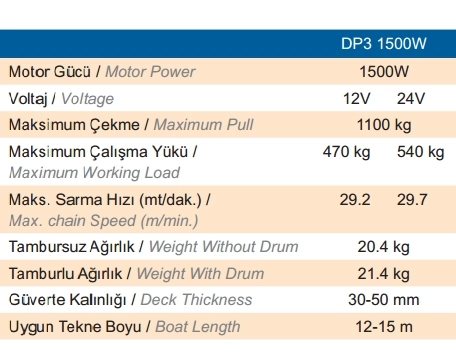

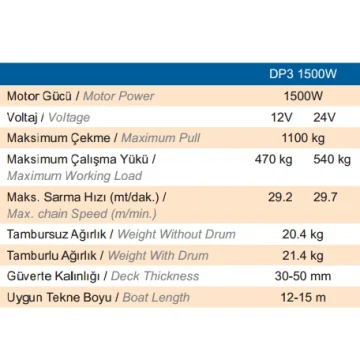

| Model | DP3 |
|---|---|
| Power | 1500 W |
| Voltage | 24 V |
| Gypsy | 10 mm (Suitable for 10 mm ISO, 3/8˝ G4, 3/8˝ BBB chains) |
| Type | Vertical windlass, drumless model |
| Body Material | AISI 316 stainless steel body, anodized aluminum gearbox housing |
| Working Load | 180 kg |
| Motor Protection Class | IP67 waterproof motor (on 700 W, 1000 W, 1500 W models) |
| Rope Pulling | Capability to pull 12/14 mm rope with the chain gypsy |
| Other Features | Manual free-fall system, chain stripper bar, solenoid and windlass handle are standard equipment, sensor for optional chain counter is standard on the windlass |
...
...
