The Quick Tumbler brand electric capstan winch is designed for 24V DC systems. With its 1500W motor, it offers a maximum pulling capacity of 1200 kg and a maximum working load capacity of 500 kg.
| Motor Power | 1500 W |
| Operating Voltage | 24 V |
| Maximum Pulling Capacity | 1200 kg |
| Maximum Working Load | 500 kg |
| Working Load | 170 kg |
| Amperage at Working Load | 85 A |

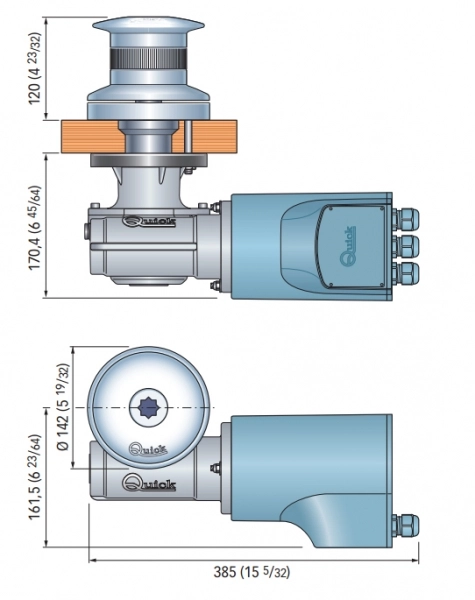

| Drum Diameter | 142 mm |
| Winding Speed (No Load) | 29.7 m/min |
| Winding Speed (at Working Load) | 20.4 m/min |
| Suitable Boat Length | 16-22 m |
Its construction utilizes AISI 316 stainless steel, aluminum, chrome plating, and composite materials. It has an IP67 waterproof motor protection rating and comes standard with a solenoid valve. It is CE certified.
...
...
